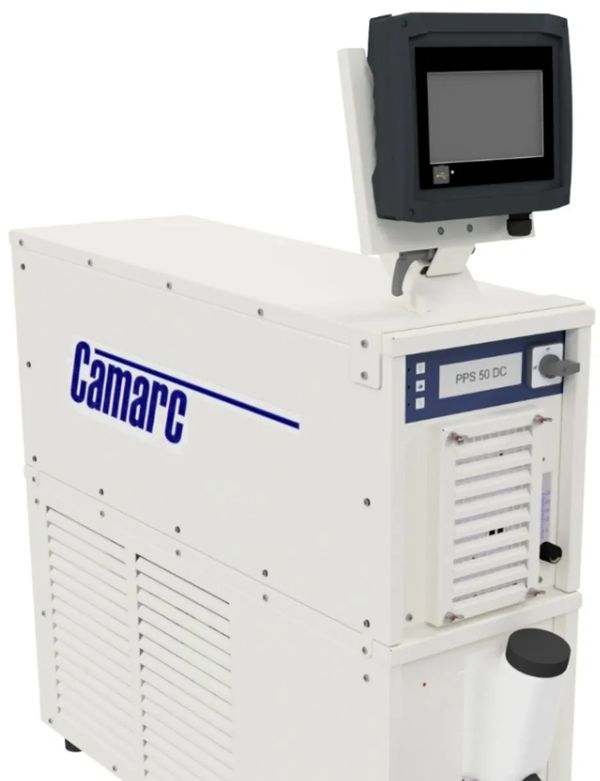

PPS 50 Plasma Welding Power Source - DC Only

Multi-function (Plasma and TIG) Welding Power Source for Seam and Spot Welding comprising

• Remote Touch Display with Job Memory
• Electronic Plasma Gas Control : 0.2 – 5 lpm
• Manual Shield Gas Control : 0.5 – 10 lpm
• Quick Torch Connection

Technical Specification

• Supply Voltage – 115 Volt (+/- 10%)
• Welding Current Plasma Output   –   100 % Duty Cycle: 50 Amps
• Welding Current TIG Output          –   100 % Duty Cycle: 50 Amps
• Pilot Current Output                        – 100% Duty Cycle:        15 Amps

• Dimensions: 844 X 280 X 1060mm
• Weight: 60 kg

Options

• Integrated Wire Drive Card
• Electronic Shield Gas Control

PMTPS 50 DC TIG Welding Power Source - DC Only

TIG Welding Power Source for Seam and Spot Welding comprising

• Touch Display with Job Memory
• Electronic Shield Gas Control : 0.05 – 12 lpm
• Pulsed Mode
• Quick Torch Connection

Technical Specification

• Supply Voltage – 115 Volt (+/- 10%) 50/60 Hz
• Welding Range 0.2 - 50 Amps
• Welding Current Output – 100 % Duty Cycle: 50 Amps

• Dimensions: 634 X 309 X 605mm
• Weight: 47 kg

Options

• Integrated Wire Drive Card

PPS 350 TL Plasma Welding Power Source - DC Only

Multi-function Plasma and TIG Welding Power Source for Seam and Spot Welding comprising:

• 7” Touch Display with Job Memory
• Electronic Plasma Gas Control : 0.1 – 10 lpm
• Electronic Shield Gas Control : 0.5 – 20 lpm
• Quick Torch Connection
• Internal Coolant Recirculation System
• Integrated Wire Motor Control - Range: 0.1 - 10.0 m/min
• Emergency Stop / Control Stop function

Technical Specification

• Supply Voltage – 400 - 460 Volt, 3 Phase, 50 / 60 Hz (+ / 15%)

Plasma

• Welding Current Output – 40 % Duty Cycle: 320 Amps
• Welding Current Output – 100 % Duty Cycle: 220 Amps
• Pilot Current Output – 35% Duty Cycle:          50 Amps
• Pilot Current Output – 100 Duty Cycle:          30 Amps
• Pilot Arc Current Range:         0.5 – 50 Amps
• Welding Arc Range:                          3 – 350 Amps

Plasma

• Welding Current Output – 40 % Duty Cycle: 350 Amps
• Welding Current Output – 100 % Duty Cycle: 290 Amps
• Welding Arc Range:                          3 – 350 Amps

• Dimensions:       1055 X 662 X 1548mm
• Weight:         275 kg

Options

• Wheeled Mounting Frame with Bottle Rack
• DeviceNET / EtherNET Bus Interface
• Process Data Logging

PPS 350 TL Plasma Welding Power Source - DC Only

Multi-function Plasma and TIG Welding Power Source for Seam and Spot Welding comprising:

• 7” Touch Display with Job Memory
• Electronic Plasma Gas Control : 0.1 – 10 lpm
• Electronic Shield Gas Control :   1.0 – 20 lpm
• Quick Torch Connection
• Internal Coolant Recirculation System

Technical Specification

• Supply Voltage – 400 - 460 Volt, 3 Phase, 50A, 50/60 Hz (+ / 15%)

Plasma

• Welding Current Output – 100 % Duty Cycle: 400 Amps
• Pilot Current Output – 100 Duty Cycle:        200 Amps
• Pilot Arc Current Range:          3 – 200 Amps
• Welding Arc Range:                          3 – 350 Amps

Plasma

• Welding Current Output – 40 % Duty Cycle: 350 Amps
• Welding Current Output – 100 % Duty Cycle: 290 Amps
• Welding Arc Range:                          5 – 400 Amps

Options

• Wheeled Mounting Frame with Bottle Rack
• DeviceNET / EtherNET Bus Interface
• Process Data Logging
• Cold Wire Feed Unit (Single / Twin Wire)
• Hot Wire Feed Unit (Single / Twin Wire)
